information retrieval system

Project Overview

IR Evaluation on Social Event Detection
A Comparative Evaluation of a Vector Space and Boolean Model for Korean Election Information Retrieval

Developed by Patrik Lytschman, Lukas Welker, and Tony Meissner at Chung Ang University for the course on Natural Language Processing and Information Retrieval.

Data Collection

Data collection was focused on gathering articles related to “Korea” within a specific time window (March 12, 2024 to April 12, 2024). Several APIs and web scraping methods were used:

• New York Times API: Initially used, but full articles were behind a paywall and a temporary ban occurred due to bot-like behavior.
• The Guardian API: Retrieved 96 articles using a similar approach with BeautifulSoup4.
• GNews API: Leveraged a free 10-day trial to collect 627 articles from Google News.

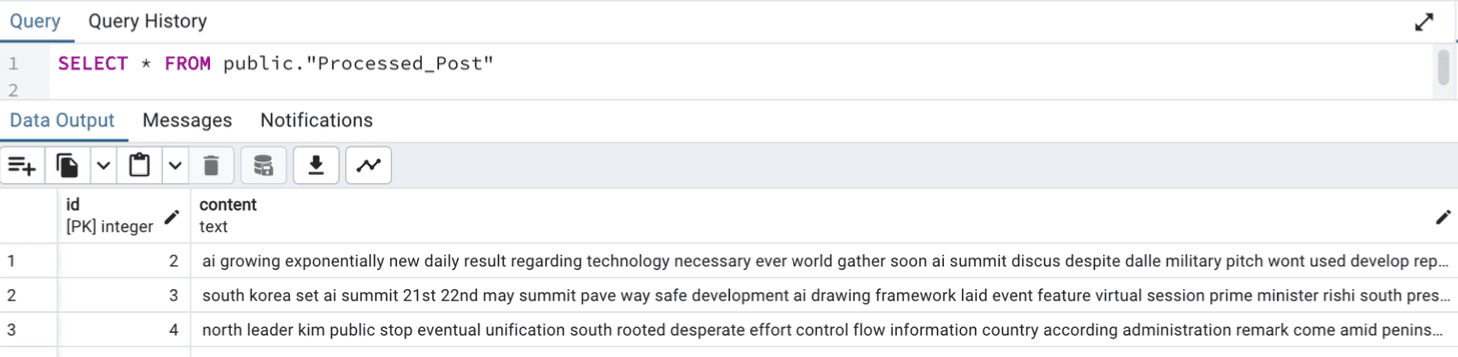

All retrieved articles were stored in CSV files and then inserted into a PostgreSQL database (the “Post” table). See below for an example cutout of the database table:

Implementation of IR System

The IR system was built in three major parts:

1. Preprocessing:
   Based on all of our collected documents, we have a total of about 440.000 words. This large number illustrates how important preprocessing is. In Table 1 you can see a list of methods we implemented to reduce the vocabulary size.

   Vocabulary Changes During Preprocessing

   Method	Vocab before	Vocab after	Change (percentage)
   Removing special characters and lowercase everything	440.000	438.309	-0.38 %
   is_english function	438.309	397.684	-9.26 %
   Removing non English words	397.684	315.195	-20.74 %
   Removing stop words	315.195	165.091	-47.62 %
   Lemmatization	165.091	165.091	-0 %
   Removing words that occur only once	165.091	161.587	-2.12 %
   Removing duplicate words	161.587	6.834	-95.77 %

   After preprocessing, documents were inserted into a “Processed_Post” table.



2. Boolean Model:
   An inverted index was built using a dictionary and custom linked list to store document IDs.
   The search utilizes set algebra (AND, OR, NOT) to compute intersections, unions, and differences of document sets.
   Optimization was achieved by sorting query tokens based on the size of their inverted list.



3. Vector Space Model:
   Documents and queries are represented as TF-IDF vectors. Key steps include:
   • Calculating TF and IDF values for each term.
   • Applying Singular Value Decomposition (SVD) to reduce the dimensionality of the term-document matrix (from over 6500 dimensions) and improve cosine similarity discrimination.
   • Adjusting the cosine similarity with a time-based multiplier to favor newer documents.
   Cosine similarities improved notably after applying SVD (e.g. from [0.07, 0.0] to [0.32, -0.28]).

Exposing the Functions

The IR system’s functionalities are exposed through multiple channels:

1. FastAPI Endpoints: Endpoints for both search_boolean_model and search_vector_space are implemented. All queries are lemmatized before processing.

   Search

   GET

   /search/vector-space[?q=search_term]

   Search Vector Space

   POST

   /search/boolean

   Search Token Actor

2. User Interface: A web interface built with Next.js and NextUI allows interactive search. Users can switch between Boolean and Vector Space models.






3. Deployment: The complete application is deployed on Microsoft Azure App Service. Access the interface here and the API documentation here.

Evaluation

The IR system was evaluated using standard metrics: precision, recall, and F1-score. Four queries were used to assess both models.

Example Search Queries:

Overall Evaluation Metrics:
Boolean Model vs. Vector Space Model

Additionally, evaluation over time (see Figure 5) indicates that the election event on April 10, 2024 resulted in a marked increase in retrieved documents. The query-specific evaluation (Figure 6) further details differences in recall, precision, and F1 across the models.
